Charging station PRO 2x11kW Type 2 – the Charging station PRO 2x11kW Type 2 is a portable and durable EV charging station designed for construction sites, events, and other temporary locations. It stands firmly on its own legs, while strong carrying handles make transportation effortless. A lockable door and a robust marine-grade aluminium housing ensure safe operation in all Nordic weather conditions. Built for professional use, this charging station is flexible, future-proof, and ready to meet demanding charging and reporting requirements. Key Features 2x Type 2 sockets for electric vehicle charging 2x11kW output (adjustable up to 2x22kW) Adjustable charging power 6–32A per socket MID-approved kWh metering – reliable consumption monitoring and reporting Load management – easily adjustable per station Integrated AC/DC fault detection and protection RFID-ready and OCPP-open – connectable to third-party payment systems Free Garo Connect app for programming and operation Free 4G connectivity , with WiFi and WiFi Mesh options Practical and Robust Design Marine-grade aluminium housing for durability in tough environments Lockable door for added security Stable feet and carrying handles – portable yet freestanding Fully brandable according to customer requirements 5-year warranty Technical Specifications Outlets: 2 × Type 2 Power: 2 × 11 kW (adjustable up to 2 × 22 kW) Connection: pre-installed 32A supply cable with plug (1 m) Optional hardwired installation and daisy-chaining (2 × AL/CU 6–95 mm² terminals) 63A main switch Charging station PRO 2x11kW Type 2 is the ideal portable EV charging solution for worksites and events – safe, reliable, and ready for the future.

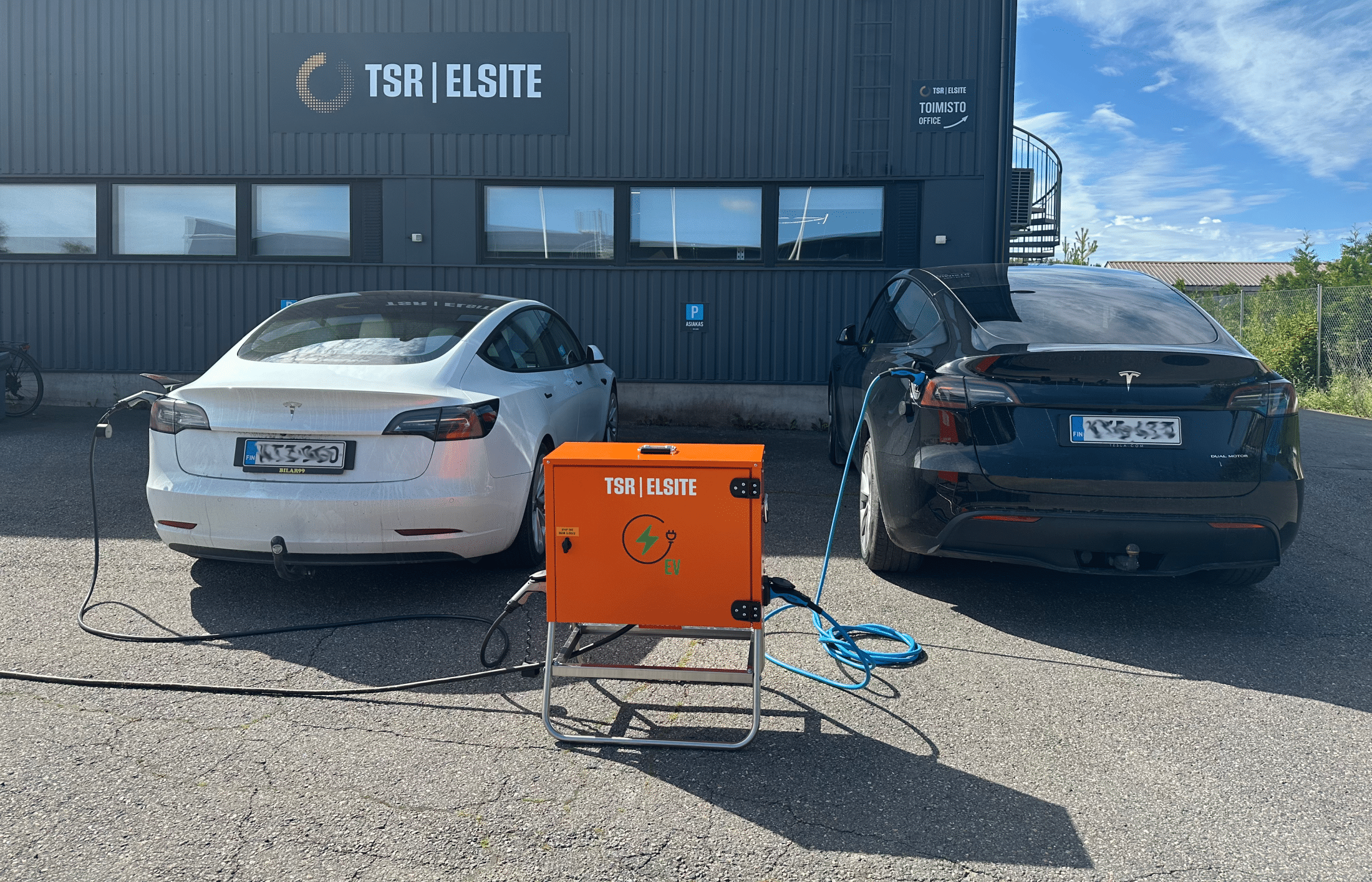

Charging station PRO 2x11kW Type 2 on the worksite

The distribution board is the site’s outlet point: power for hand tools, lighting and dryers is taken from it. It is placed close to the work so that extension cords stay short.

Boards are added as the site grows. The whole is worth planning in advance so that the supply is sufficient for all of them.

Outputs: 2 x Type 2. Count the work points before choosing – the number of outputs decides how many machines one board can feed.

Where Charging station PRO 2x11kW Type 2 is used

Typical sites are construction projects, renovations, industrial maintenance and event power. What they share is that the electrical supply is temporary and the conditions are demanding.

Temporary does not mean lighter requirements. Site equipment is exposed to dust, moisture, moving and mechanical stress in a way that fixed installations never are.

Check the load distribution between phases during use. Uneven distribution overloads one phase while the others run half empty, and the usual symptom is a fuse that keeps tripping.

Charging station PRO 2x11kW Type 2 – how to choose the right model

The equipment is chosen by rated current and outputs. Start by calculating the simultaneous load and the output types needed, and choose the model on that basis.

Other models of the same type are Temporary power supply subcabinet 250 A, Sub cabinet 160 A, Sub cabinet TAK 125A KS, Sub cabinet TAK 63 A KS, Subcabinet TAK 32A.

Other details that affect the choice: weight 29,5 kg, dimensions 65×76×30 cm. These are worth checking already at the quotation stage.

You can see the full range in the product group, and read about real-time monitoring on the Spine page.

Practical notes for use

Winter brings requirements of its own. Condensation forms when cold equipment is brought into the warm, and moisture inside the enclosure is a common reason for an RCD tripping with no visible cause.

Mark the equipment with the site details and keep a record of what is fed from where. On a site with several contractors that saves time at every fault-finding.

RCD protection is mandatory for socket outputs on a site. Its operation is tested with the test button at commissioning and at regular intervals afterwards.

Charging station PRO 2x11kW Type 2 – installation and maintenance

Installation and connection work is carried out by a qualified electrician. The equipment must be made dead before connection work, and the absence of voltage verified by measurement.

Place the equipment on level ground and so that it can be reached freely even when the site fills up with material. Material stacked in front blocks both use and emergency isolation.

Test the RCD with its test button at commissioning and at regular intervals afterwards. The test takes a second and is still almost always forgotten.

The unit weighs 29,5 kg. Take the weight into account when moving and lifting – damage is most often caused during transport, not in use.

Check the joints and fixings regularly during use. A joint that heats up is a sign of a fault and should be corrected before the fault spreads.

Safety and inspections

Site electrical installations are subject to the same requirements as fixed installations, and some of them are stricter. The equipment has to withstand moving, dust, moisture and mechanical stress for the whole project.

The installation is inspected at commissioning and regularly during use: enclosure, joints, the operation of the protective devices and the fact that live parts cannot be reached.

Damaged equipment is not repaired improvised on site. A cracked enclosure, a burnt terminal or a damaged socket is replaced – on a site a temporary repair almost always becomes permanent.

Document the configuration and any changes made. Up-to-date information on outputs and protection speeds up fault-finding and the next inspection.

Delivery and sizing help

We deliver the equipment together with the cables and the rest of the site power supply in one delivery, so the set is complete when it arrives on site.

Describe the whole site in your request for quotation: supply power, the outputs needed and the estimated length of the project. We size the set on that basis.

Use the product number 103090001 when ordering and when asking about spare parts. It identifies this exact model, which matters when the same series comes in several sizes.

We also help with the sizing. If you are unsure about the size or the number of outputs, ask us – equipment sized wrong costs more than equipment chosen right the first time.

Charging station PRO 2x11kW Type 2 – technical data

Sockets	2 x Type 2
Power	2 x 11 kW (max.2 x 22 kW)
Connection cable	1m 32A
Fixed connection	2 × AL/CU 6–95 mm²
Main switch	63A
Dimensions (H×W×D)	65×76×30 cm
Weight	29,5 kg

Frequently asked questions

What outputs does the product have?

Outputs: 2 x Type 2.

How long is the cable?

Length: 1m 32A.

What are the dimensions?

Dimensions: 65×76×30 cm.

How much does the product weigh?

Weight: 29,5 kg.

What is the product number?

The product number is 103090001. Use it in requests for quotation and spare part enquiries.

Who may install the product?

Installation is carried out by a qualified electrician. The requirements are explained in more detail on the Tukes website.

The requirements for electrical installations on worksites are explained in more detail on the Tukes website.
