Mobile heat exchanger TSR V-Heat 400kW MK III
SKU:801030009Mobile heat exchanger TSR V-Heat 400kW MK III
The TSR V-Heat 400kW MK III is a third-generation mobile heat exchanger with remote control. It is an efficient and versatile solution for heat transfer in demanding conditions.

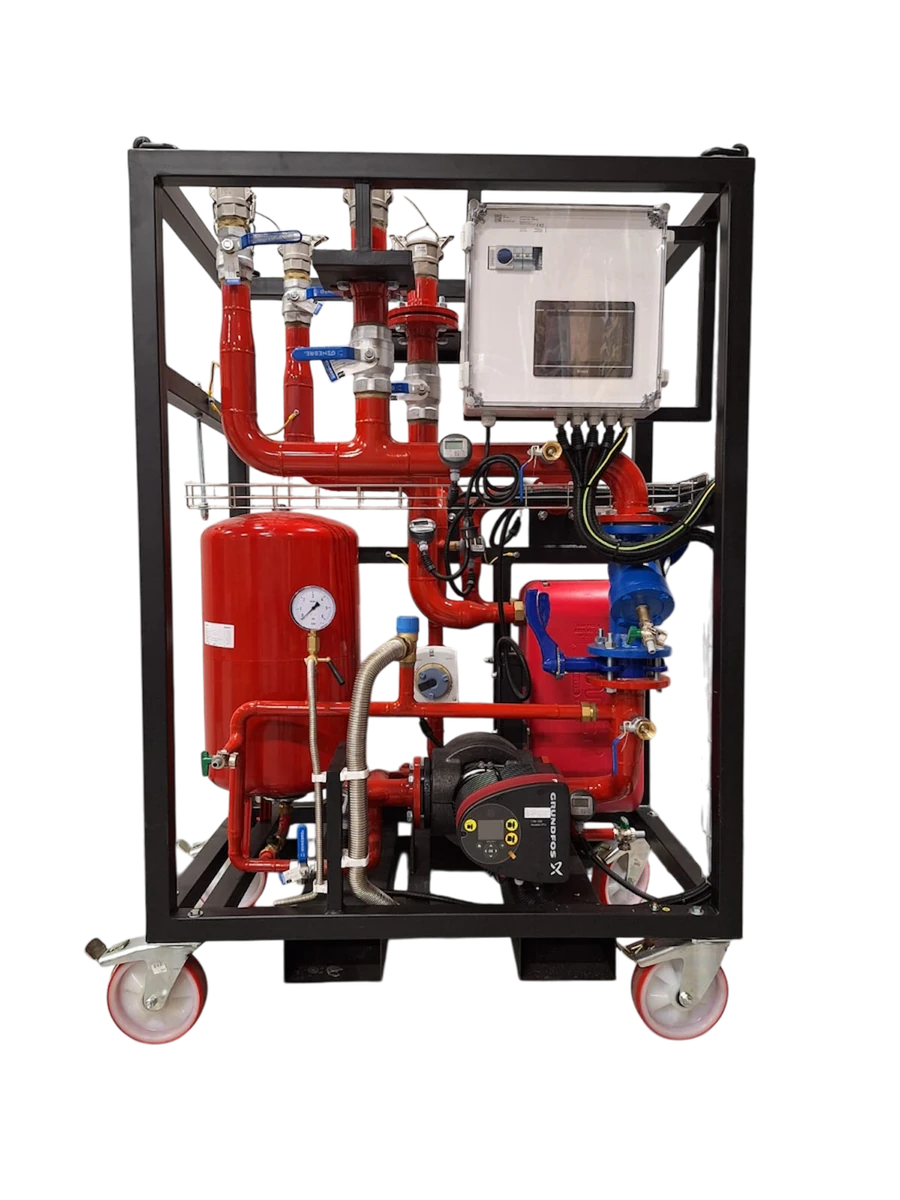

This model is equipped with a durable frame and large wheels that make it easy to move on construction sites and in industrial environments. The unit is sized to fit a EUR pallet, so it is easy to transport and store.

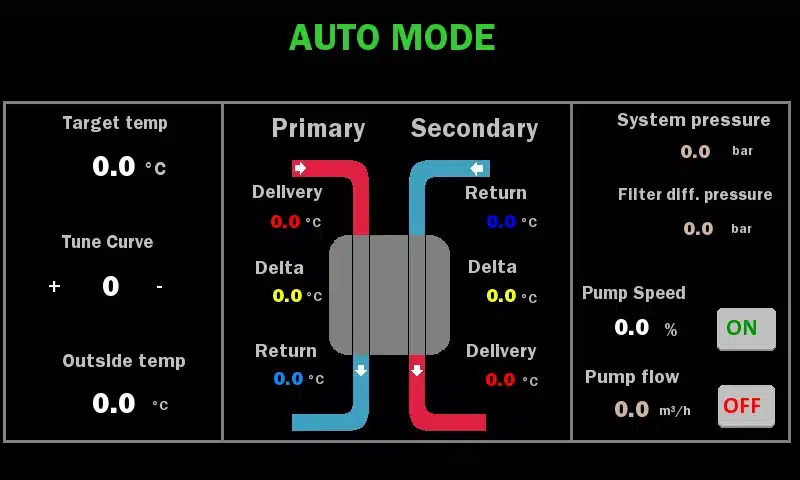

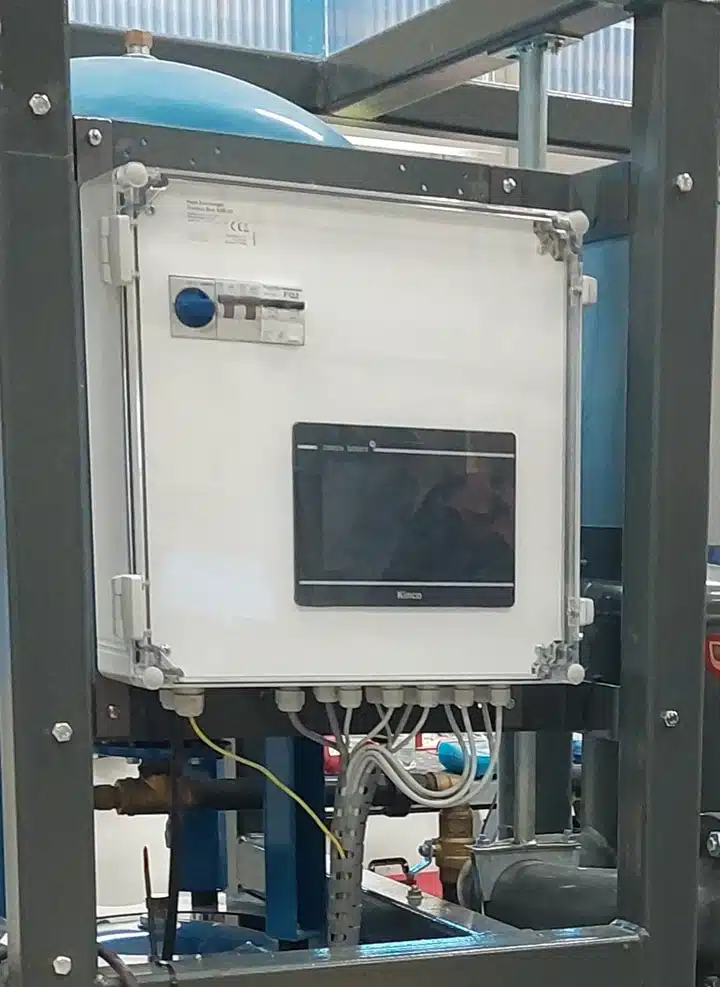

The heat exchanger is equipped with an LCD display and digital sensors that allow accurate monitoring of temperature and system pressure. The unit is compatible with external degassers and filters. It can be lifted by forklift and with lifting hooks, so it is easy to move.
Technical information
| Power | 400 kW |
|---|---|
| Voimanlähde | 400V / 16A |
| Putken halkaisija (ensiö/toisio) | DN50 / DN65 |
| Säätöventtiili (ensiö) | DN25 / kvs 10,0 |
| Ensiön lämpötila (tulo/paluu) | 100 °C / 41,18 °C |
| Toision lämpötila (tulo/meno) | 40 °C / 60 °C |
| Virtaama (ensiö/toisio) | 6,09 / 17,43 m³/h |
| Painehäviö (ensiö/toisio) | 2,78 / 21,0 kPa |
| Max. paine-ero | 800 kPa |
| Max. työpaine (ensiö/toisio) | 16 bar / 6 bar |
| Max. työlämpötila (ensiö/toisio) | 120 °C / 95 °C |
| Dimensions (W x D x H) | 1200 x 770 x 1836 mm |
| Weight | 320 kg |
| Lämmönvaihdin | SWEP B220Lx100 |
| Regulaattori | Siemens SAX 61.03 |
| Pump | Magna3 50-150F |

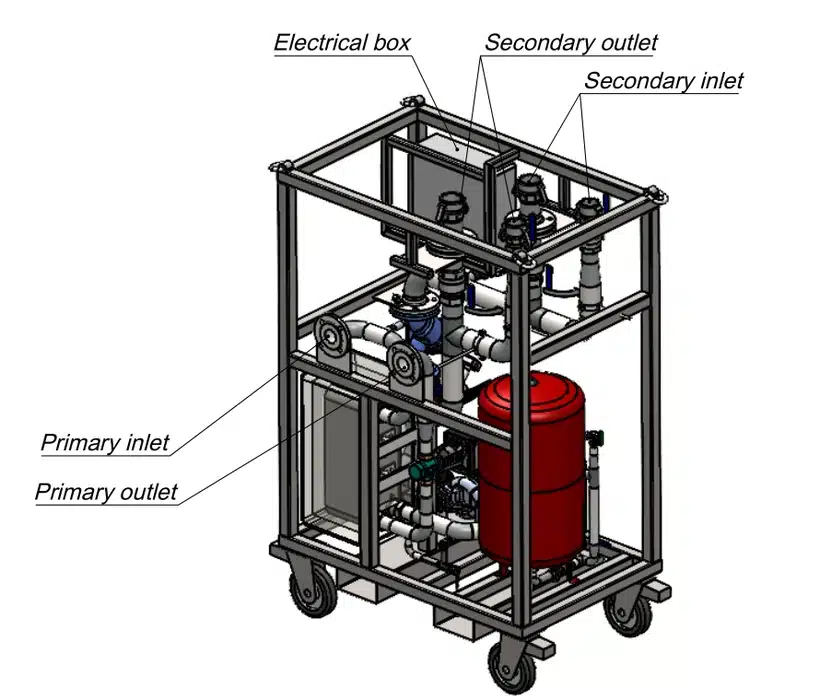

| Kytkentä (ensiö/toisio) | Flange DN50 / Camlock 'D' 2xDN50, 2xDN65 |
| Sertifikaatit | PED Art. 14 2014/68/UE |
| Approvals | CE |
| Tuotenumero | 801030009 |
